Laboratory strategy for autoantibodies testing as a diagnostic marker of pulmonary fibrosis in systemic sclerosis: A preliminary study prior to cohort registry of systemic sclerosis in West Java Indonesia

Abstract

Background: Interstitial lung disease (ILD) is a complication often found in patients with Systemic Sclerosis (SSc). This usually manifests as pulmonary fibrosis and is the leading cause of death in SSc patients. Antinuclear antibodies indirect immunofluorescence (ANA-IIF) test and specific autoantibodies testing could be employed as a diagnostic marker to detect pulmonary fibrosis, but the high cost of these tests often burdens patients in developing countries. This study aims to compare ANA-IIF and an alternative, possibly inexpensive method to detect pulmonary fibrosis in SSc.

Methods: This is a preliminary study prior to the cohort systemic sclerosis registry conducted in Rheumatology Outpatient Clinic and Clinical Pathology Department at Dr. Hasan Sadikin General Hospital, Bandung, from January 1, 2018 to December 31, 2020. Two contrastive laboratory testing strategies were followed to confirm pulmonary fibrosis in 61 SSc patients. The first strategy was to perform antinuclear antibodies indirect immunofluorescence (ANA-IIF) test followed by specific autoantibodies detection [anti-topoisomerase-I (ATA), Anti-Th/To, SSc Profile, Immunoblot]. The alternative strategy included conducting the tests for SSc autoantibodies in the reverse order.

Results: A total of 42 out of 61 (68.8%) subjects were diagnosed with pulmonary fibrosis by high-resolution computed tomography (HRCT) scan. The first strategy detected dominant specific pulmonary fibrosis autoantibodies in subjects with pulmonary fibrosis: homogeneous nucleolar pattern was dominant (n = 25, 59.52%), followed by nucleolar pattern (n = 17, 40.48%). Of all the subjects with a homogeneous nucleolar pattern, ATA was detected in 15 subjects (60%), the combination of ATA and Th/To in 9 subjects (36%), and Ro52 in one subject (4%). The second strategy yielded positive autoantibodies results in 29 out of 42 (69.05%) subjects, ATA in 20 subjects (47.61%), and Th/To in 9 patients (21.44%), but failed to detect any autoantibodies specific to SSc-ILD in 13 subjects (30.95%).

Conclusion: The first strategy [ANA-IIF followed specific autoantibodies testing (ATA, Th/To, SSc profile and immunoblot)] is more likely to detect specific autoantibodies toward ILD in SSc patients.

Introduction

Systemic sclerosis (SSc) is a complex systemic autoimmune rheumatic disease with complicated pathophysiology and heterogeneity of organ involvements1. The cause is yet to be determined. It was suggested that both genetic and environmental factors should be considered. The hallmark of SSc pathogenesis is endothelial cell injuries, followed by aberrant vascular and production of autoantibodies. Excessive deposition and accumulation of extracellular matrix are common in these conditions. As a consequence of radical tissue remodeling, tissue architecture may be destroyed and organ function may be lost2. The clinical manifestations of SSc depend on the organs involved, such as the skin, lungs, heart, kidneys, and gastrointestinal tract.

Interstitial lung disease (ILD) is commonly found in SSc and leads to pulmonary fibrosis. Interstitial lung disease affects the tissue and space surrounding the lungs' air sacs3. The incidence of SSc with pulmonary manifestations in 2016 in Europe was four in 100,000 individuals per year. In Europe, approximately 35% of SSc patients have pulmonary manifestations4, 5. However, in Dr. Hasan Sadikin (RSHS) Hospital Bandung, Indonesia, there are no details on the occurrence of SSc with and without pulmonary manifestations.

The current diagnosis of SSc was made using the criteria developed by The American College of Rheumatology/European League against Rheumatism (ACR/EULAR) in 2013, which included laboratory tests (detection of specific autoantibodies)1, 4. Patients with SSc have specific autoantibodies, such as anti-centromere, anti-topoisomerase I, anti-RNA polymerase III, and several other autoantibodies6. Clinical symptoms (skin thickness, changes in organ involvement) and laboratory parameters that characterize inflammatory activity, fibrosis, and vasculopathy are used to assess the disease activity in SSc2.

Systemic Sclerosis-related Interstitial Lung Disease (SSc-ILD) is a severe SSc manifestation that can lead to death7. The presence of ILD in SSc patients influences the disease's severity and prognosis3. High-Resolution Computed Tomography (HRCT) of the chest is the gold standard and evaluation of SSc specific autoantibodies: anti-topoisomerase I (ATA) and anti-Th/ToRNP are the two factors to consider when diagnosing SSc with pulmonary manifestations8, 9. The pathogenesis of this disease is complicated and is still unknown. Autoantibodies, on the other hand, are a serologic hallmark of the disorder and are useful as diagnostic and prognostic biomarkers. Autoantibodies directed against one or more autoantigens are found in up to 95% of SSc patients10.

Although there is no current algorithm for SSc-ILD-specific autoantibody monitoring, specific autoantibodies detection plays an important role as a diagnostic marker for pulmonary fibrosis9. The first strategy is commonly used in diagnosing SSc-ILD. The first strategy begins with a screening examination with ANA-IIF followed by a specific autoantibodies examination, namely the SSc profile. Thoracic HRCT examination is the gold standard in diagnosing SSc-ILD. The problem faced in this radiological examination is that not all health care organizations possess HRCT facilities, and they are often restricted to big cities. The test of specific autoantibodies (first strategy) is expected to overcome this limitation. In addition to being affordable, it makes examination procedures easier. Considering the price of the HRCT, IIF ANA, and SSc profile examinations which are quite expensive, the author wants to investigate whether a specific autoantibody examination can only be carried out without an autoantibody screening examination (second strategy) to detect pulmonary fibrosis. This study aimed to compare two laboratory diagnostic strategies for detecting pulmonary fibrosis in SSc.

Download figure
Enlarge figure

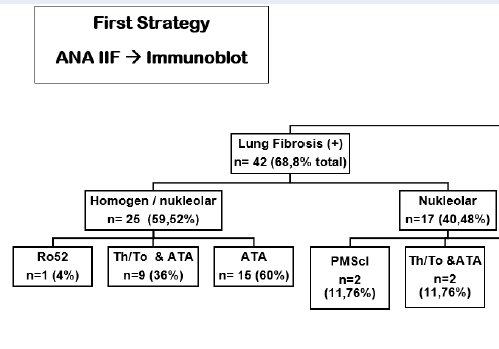

Figure 1 . First strategy (ANA IIF → SSc Profile). Abbreviation : SSc : Systemics Sclerosis; ATA : anti-topoisomerase I; Th/To : anti-Th/To; ANA IIF : indirect immunofluorescence antinuclear antibodies test; SSc Profile : Systemic Sclerosis Profile Test. https://doi.org/10.6084/m9.figshare.16529859.v1

Download figure
Enlarge figure

Figure 2 . Second strategy Examination (SSc profile → ANA IIF) . Abbreviation : SSc : Systemics Sclerosis; ATA : anti-topoisomerase I; Th/To : anti-Th/To; ANA IIF : indirect immunofluorescence antinuclear antibodies test; SSc Profile : Systemic Sclerosis Profile Test. https://doi.org/10.6084/m9.figshare.16529868.v1

Methods

A preliminary study prior to cohort registry systemic sclerosis was conducted in Rheumatology Outpatient Clinic and Clinical Pathology Department at Dr. Hasan Sadikin General Hospital Bandung, from 1 January 2018 until 31 December 2020. This was a descriptive study with a cross-sectional design. The research was approved by the local Ethics Committee once the patients gave their informed consent. The American College of Rheumatology guidelines for SSc (2013) was used to make the diagnosis1.

Patients with a diagnosis of SSc who visited the RSHS Rheumatology Outpatient Clinic between January 1, 2018, and June 30, 2020, make up the study's population. The inclusion criteria for this study were patients with SSc or Mixed Connective Tissue Disease (MCTD) with ILD images on HRCT examination. The exclusion criteria for this study were patients with lung tuberculosis or a history of lung tuberculosis.

All the patients underwent an HRCT scan of the chest as well as a pulmonary function test (PFT) on the same day. The reference technique for the noninvasive diagnosis of ILD is an HRCT scan of the chest, which offers excellent parenchymal detail11. The patient's serum was collected for autoantibodies immunofluorescence test (IIF ANA, Euroimmun), and specific autoantibodies test (SSc profile, Immunoblot, Euroimmun).

The most commonly used technique for ANA determination is indirect immunofluorescence (IIF)12. To detect specific autoantibodies, antigens from human epithelial cell line-2 (Hep-2) cells, which are derived from human larynx carcinoma cells, are used13. The cut-off for positive test results is 1:160, but due to the high variability of the test and technician-dependent variations, this cannot be generalized. High autoantibodies titers (> 1:160) can be detected in the patients, but only 5% in healthy people14. Low autoantibody titers (1:40) can be found in 25 — 30% of healthy controls, and therefore should be regarded as negative test results15.

Immunoblot is the method of choice for the confirmatory test. Blot strips are used as an antigen-containing solid phase. They are coated with antigen extracts separated by electrophoresis according to the molecular mass. The Immunoblot strips are also coated with membrane chips that contain highly purified native or recombinant antigens. If the sample contains specific autoantibodies, these will bind to the membrane-bound antigens. In the next step, an alkaline phosphatase labeled autoantibodies (conjugate) is added, which binds to the specific autoantibodies. If specific autoantibodies are present in the patient sample, a dark line appears at the respective antigen position. The staining strength is proportional to the number of autoantibodies present in the sample. The staining of the control band at the lower end of the strip indicates that the individual incubation steps were completed correctly. The evaluation is performed automatically with the EUROLineScan software16.

Patients who met the inclusion criteria had their lungs checked for pulmonary fibrosis using a gold standard diagnostic method called HRCT. Two laboratory diagnostic strategies were described. The first strategy, which consisted of a screening test and a confirmation autoantibodies test: antinuclear autoantibodies screening (ANA IIF, Euroimmun) with specific autoantibodies detection Anti-topoisomerase I (ATA) and Anti Th/To (SSc profile, Immunoblot, Euroimmun). The second strategy was a contrastive method with the first one, which began with specific autoantibodies detection and then moved on to autoantibodies screening. The data collected were tabulated and presented in the form of descriptive summaries.

Table 1.

The relationship between specific autoantibodies with lung fibrosis in the first strategy

	Specific autoantibodies SSc-ILD	Non-specific autoantibodies SSc-ILD N (%)
Lung Fibrosis	39 (92.8%)	3 (7.2%)
No Lung Fibrosis	10 (52.6%)	9 (47.4%)

Table 2.

The relationship between specific autoantibodies with lung fibrosis in the second strategy

	Specific autoantibodies SSc-ILD N (%)	Non-specific autoantibodies SSc-ILD N (%)
Lung Fibrosis	29 (69%)	13 (31%)
No Lung Fibrosis	8 (42.2%)	11 (57.8%)

Results

A total of 61 patients were included, with 42 of them having pulmonary fibrosis (68.8%), the mean age of 42 years, and the study group had female predominance (94.73%). There were 11 patients with a limited type of SSc, 45 patients with a diffuse type of SSc, and 5 patients with overlap syndrome, according to the clinical subtypes of the diseases.

Using the first strategy method (Figure 1), autoantibodies screening of homogenous nucleolar pattern is dominantly found (n = 25, 59.52%) and in combination with ATA antibodies (n = 15, 60%), ATA & Th/To antibodies (n = 9, 36%) in the total 42 (100%) subjects with pulmonary fibrosis. Meanwhile, using the second strategy method (Figure 2), a total of 29 (69.05%) subjects with specific pulmonary fibrosis autoantibodies were found, twenty subjects (47.61%) of them with ATA autoantibodies, and homogenous nucleolar pattern positivity reaching 65% (n = 13). Nine subjects (21.44%) had Th/To antibodies, and 3 subjects had a combination of homogenous/nucleolar patterns (33.3%). We found interesting results using the second strategy (Figure 2), in which there were 13 (30.95%) patients with non-specific SSc autoantibodies. A summary of the research results can be seen in the Figure 1, Figure 2.

To compare the differences between the two strategies, data will be analyzed with a p-value < 0.05. We analyzed the relationship between specific autoantibodies with lung fibrosis in the first strategy with the Chi-square test in Table 1.

From the results of the analysis using the Chi-square test, it is obtained that — the relationship between specific autoantibodies with lung fibrosis in the first strategy is p = 0.000252 (p < 0.05), which means that there is a significant relationship between specific autoantibodies with lung fibrosis in the first strategy. We analyzed the relationship between specific autoantibodies with lung fibrosis in the second strategy with the Chi-square test in Table 2.

From the results of the analysis using the Chi-square test, it is obtained that the relationship between specific autoantibodies with lung fibrosis in the second strategy is p = 0.086933 (p > 0.05), which means that there is no significant relationship between specific autoantibodies with lung fibrosis in the second strategy.

Discussion

Systemic sclerosis is a complex autoimmune disease whose pathogenesis is characterized by three hallmarks: small vessel vasculopathy, production of autoantibodies, and fibroblast dysfunction leading to increased deposition of the extracellular matrix1. Patients with SSc often show pulmonary involvement, which most commonly manifests as fibrosis or interstitial lung disease (ILD)7. It's reported that 80% of SSc patients have pulmonary disease. Furthermore, patients with SSc who have pulmonary involvement have a relatively poor prognosis, and pulmonary disease is the leading cause of death for SSc patients13.

The diagnosis of SSc was based on clinical symptoms and the presence of SSc-specific autoantibodies (the criteria of the ACR/EULAR in 2013). The American College of Rheumatology/European League against Rheumatism includes several autoantibodies that are specific for SSc disease, including ATA, anti-centromere, and anti-RNA polymerase1. Laboratory examinations have a key role in diagnosing SSc. The main tests that play a role are autoantibodies examinations. The immunological examination of SSc is divided into two stages, i.e., a screening test and a follow-up/confirmation test. For SSc screening purposes, the indirect immunofluorescence anti-nuclear autoantibodies (IIF-ANA) method is used13. Post-screening, the examination of autoantibodies can be followed by highly specific autoantibodies examinations/confirmatory tests, such as the autoantibodies mono test using the ELISA method or the ANA/SSc profile17, 18. Autoantibodies are a serologic hallmark of the disease and have been proven invaluable as diagnostic and prognostic biomarkers10.

Pulmonary involvement is linked to a poor prognosis in patients with SSc, so it is important to detect and recommend interventions against ILD earlier19. With asymptomatic disease progression i.e., without dyspnea or cough, the diagnosis is often delayed. Up on HRCT scan, up to 90% of patients will have interstitial anomalies, and 40 — 75% will have pulmonary function test (PFT) changes7. Early parenchymal lung involvement is common after SSc diagnosis, with 25% of patients developing clinically significant lung disease within three years as identified by physiological and radiographic abnormalities7. Patients with the diffuse type of SSc have a higher rate of ILD than those with the limited type of SSc. The European Scleroderma Trials and Research group found that the incidence of ILD was 53% in diffuse-type SSc and 35% in limited-type SSc in 3,656 patients with SSc20.

We use two laboratory diagnostic strategies. In the first strategy (Figure 1), we begin with ANA-IIF. There were 39 (92.85%) subjects with pulmonary fibrosis-specific autoantibodies; autoantibodies screening was dominated by a homogeneous nucleolar pattern (n = 25, 59.52%) and combination with ATA were 15 patients (60%). This homogenous nucleolar pattern can be found in several SSc-ILD-specific autoantibodies, namely ATA, and the nucleolar pattern is found in anti-Th/To RNP. Then we proceeded with Immunoblot and Euroline examination; the dominance of ATA autoantibodies was observed. This meant that the first strategy could diagnose all SSc-ILD patients. The results from this first strategy are per research from Bahmer et al. stating that the specific autoantibodies in SSc-ILD are ATA and anti-Th/To13. Patients with SSc-ILD have specific autoantibodies, namely ATA and anti-Th/To RNP. Research from Solomon et al. explained that ATA found from SSc patients will increase the incidence of SSc-ILD7. Anti-topoisomerase I is found in 15 — 42% of SSc patients, with a specificity of 90 — 100%. SSc patients with ATA have a poor prognosis and are more likely to develop serious lung fibrosis21. SSc patients with ATA have a higher mortality rate when compared with SSc patients who do not have these autoantibodies12. Anti-Th/To RNP is present in 1 — 13% of patients with SSc. Anti-Th/To RNP has a strong correlation with the incidence of SSc-ILD.20A total of 85% of patients with positive ATA are often affected by lung fibrosis and are protected against isolated pulmonary arterial hypertension, according to Bahmer et al.13. In both SSc and SSc-ILD, ATA titers appear to be related to disease severity and activity22. In a pilot study, patients, primarily diagnosed as SSc-ILD but with positive and nucleolar-staining ANA, were subsequently tested for Th/To-autoantibodies and showed positive results 50%23. However, the role of these autoantibodies is unknown.

The second strategy examination (Figure 2) started with Immunoblot, Euroline examination. Out of 42 patients with SSc-ILD, there were 20 patients with ATA autoantibodies, 9 patients with anti-Th/To RNP, 13 patients with non-specific SSc autoantibodies. Then it was continued with IIF ANA examination with a dominant homogenous nucleolar pattern. These 13 non-specific autoantibodies were observed in 6 patients with anti-PM-Scl75, 4 patients with anti-Ro52, and 3 patients with anti-fibrillarin. Anti-PM/Scl autoantibodies have been discovered in a subset of myositis and/or systemic sclerosis patients. Anti-PM-Scl antibodies are found in around 25% of SSc patients with myositis overlap, but only 2% of SSc patients without myositis overlap12. According to Lega et al., anti-PM/Scl patients had symptomatic pulmonary involvement with a favorable prognosis. The characteristics of ILD associated with anti-PM/Scl autoantibodies have never been described in detail before24.

Autoantibodies to Ro52 overlapped with many other autoantibodies. Anti-Ro52 titers were significantly higher in patients with Overlap Syndrome compared to patients without it, according to Hudson et al.10. Patients with ILD had significantly higher titers than those without (mean titer, 1,542.65 versus 938.11U/ml, respectively; p = 0.06). Several studies demonstrated that anti-Ro52 is present in several systemic autoimmune rheumatic diseases. Anti-Ro52 autoantibodies are commonly found in inflammatory myositis, particularly when anti-Jo1 and interstitial lung disease are present10.

The advantage of the first strategy is that it can help diagnose SSc-ILD through SSc-ILD-specific autoantibodies which can be examined through the ANA-IIF screening followed by the SSc-Profile examination. The disadvantage of Thoracic HRCT examination as a gold standard that is only available in health facilities in big cities. Specific autoantibody examination does not require sophisticated equipment compared to HRCT examination. The examination of specific autoantibodies is expected to overcome this limitation. In addition to being affordable, it makes examination procedures easier. Another advantage of the examination of specific autoantibodies is in diagnosing SSc-ILD patients with Systemic Sclerosis Sine Scleroderma (ssSSc). SSc-ILD patients with Systemic Sclerosis Sine Scleroderma means that these SSc patients have pulmonary manifestations without skin involvement, so to diagnose SSc in these patients HRCT alone is insufficient and must be supported by specific autoantibodies test.et al. in Brazil in 2017, the prevalence of ILD up on HRCT scan was 57.1%. Thoracic HRCT examination alone cannot be used in diagnosing SSc-ILD, it should be supported by clinical symptoms of the patient, physical examination of the patient, laboratory tests that support the diagnosis of SSc-ILD, one of which is autoantibody examination25.

In this study, especially the first strategy with better performance, from 42 SSc-ILD patients (who had been examined by HRCT) there were 39 patients with SSc-ILD-specific autoantibodies (nucleolar and nucleolar homogeneous patterns (ANA-IIF) and ATA and Th/To autoantibodies). The first strategy consisting of antinuclear autoantibodies screening (ANA-IIF) and followed by autoantibody specific autoantibodies detection (Anti-topoisomerase I, Anti Th/To, SSc profile, Immunoblot) were more likely to detect specific autoantibodies toward ILD in SSc patients.

The second strategy is a specific autoantibody examination (SSc Profile) followed by a screening examination (ANA-IIF). The author's background for this second strategy is the price of the first strategy examination (ANA-IIF followed by SSc Profile) which is still relatively high for SSc patients in Indonesia. The author intends to understand if the second strategy for examination (specifically the SSc Profile) can adequately diagnose SSc-ILD. From the results of this second strategy examination, 13 patients with non-specific SSc-ILD autoantibodies were found. This means that the specific autoantibodies detection modality was not good enough in diagnosing SSc-ILD or maybe the patients had an Overlap Syndrome. Specific autoantibodies detection needs to be initiated by autoantibodies screening examination. The first strategy, which combined autoantibody screening and specific autoantibody detection, revealed more subjects with pulmonary fibrosis than the second strategy. The screening examination (IIF-ANA) followed by the detection of specific autoantibodies has become the standard in diagnosing SSc-ILD.

The limitations of this study were the small number of subjects. These two laboratory techniques would need further research to be verified.

Conclusions

The first strategy consisting of antinuclear autoantibodies screening (ANA-IIF) followed by autoantibody specific autoantibodies detection (Anti-topoisomerase I, Anti Th/To, SSc profile, Immunoblot) is more likely to detect autoantibodies specific to ILD in SSc patients.

Abbreviations

ACR/EULAR: The American College of Rheumatology/European League against Rheumatism

ANA-IIF: Antinuclear antibodies indirect immunofluorescence

ATA: Anti-topoisomerase-I

ELISA: Enzyme-linked immunosorbent assay

Hep-2: Human epithelial cell line-2

HRCT: High Resolution Computed Tomography

ILD: Interstitial lung disease

MCTD: Mixed Connective Tissue Disease

PFT: pulmonary function test

SSc: Systemic Sclerosis

SSc Profile: Systemic Sclerosis Profile Test

SSc-ILD: Systemic Sclerosis-related Interstitial Lung Disease

Th/To: anti-Th/ToRNP

Acknowledgments

This study was supported by an internal research grant from Universitas Padjadjaran Bandung, West Java, Indonesia.

The autoantibodies screening and specific autoantibodies test used ANA IIF and SSc profile Immunoblot, Euroimmun — Germany.

We thank Dr. Adhi Kristianto Sugianli for his input, ideas, and support until the completion of this research.

Author’s contributions

Anna Tjandrawati, Sumartini Dewi and Verina Logito had full access to all of the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis. Anna Tjandrawati, Verina Logito, Winda Agnestia Maranna Saragih, Andri Reza Rahmadi, and Sumartini Dewi contributed substantially to the study design, data analysis and interpretation. Anna Tjandrawati, Sumartini Dewi, and Verina Logito was the primary author and Verina Logito was a major contributor in writing the manuscript. All authors read and approved the final manuscript.

Funding

This study was supported by an internal research grant from Universitas Padjadjaran Bandung, West Java, Indonesia.

Availability of data and materials

On reasonable request, the corresponding author will provide the data used and/or analyzed during the current analysis.

Ethics approval and consent to participate

The institutional review board of the Faculty of Medicine Universitas Padjadjaran / Dr. Hasan Sadikin General Hospital Bandung, Indonesia approved the protocol #2392020 entitled “Pengembangan Sistem Registri SSc berbasis Electronic Medical Record”. All patients gave their informed consent to participate in the study, which was approved by our local Ethics Committee of Faculty of Medicine Universitas Padjadjaran / Dr. Hasan Sadikin General Hospital Bandung, Indonesia.

Consent for publication

Not applicable.

Competing interests

Anna Tjandrawati is an academic author and the Head of Division Immunoserology, Department of Clinical Pathology, Faculty of Medicine Padjadjaran University. Sumartini Dewi is an academic author, an Internist, Rheumatologist in Division of Rheumatology, Department of Internal Medicine, The Head of Immunology Study Center, Faculty of Medicine Padjadjaran University. Andri Reza Rahmadi is an academic author, an Internist, Rheumatologist in Division of Rheumatology, Department of Internal Medicine, Faculty of Medicine Padjadjaran University. The remaining authors declare no relevant financial disclosures or conflicts of interest.
